Snubbing Units
Product Introduction
The service areas of the snubbing units produced by the company includes Sulige Block, Hainan Fushan Oilfield, Jidong Oilfield, Huabei Gas Storage Oilfield. The service history consists of well completion under pressure, pipe string under pressure, packer pipe string under pressure, coiled tubing fishing under pressure, well shut-in with large ash section（1400m）,and so on, which help the company accumulate a wealth of operating experience and give the guidance to the production of snubbing units.
|
Model |
Drift Diameter （mm） |
Working Pressure （MPa） |
Number of Cylinders （piece） |
Maximum Lifting Force （T） |
Maximum Down force （T） |
Slip Load （T） |
Mast Load （T） |
Rotary Table Torque （NM） |
Type |
|
Snubbing Operation Units for Oil & Water Well |
|||||||||
|
DYJ45/14F |
186 |
14 |
2 |
45 |
27 |
45 |
/ |
/ |
Low-rise |
|
DYJ65/21F |
186 |
21 |
2 |
65 |
42 |
70 |
/ |
/ |
Conventional |
|
DYJ40/14DJ |
186 |
21 |
2 |
40 |
20 |
45 |
|
|
On-board |
|
DYJ65/14F |
186 |
14 |
4 |
65 |
42 |
70 |
/ |
/ |
Electric Pump Well |
|
DYJ30/7F |
80 |
7 |
2 |
30 |
21 |
5 |
/ |
/ |
Sucker Rod |
|
Snubbing Operation Units for Gas Well |
|||||||||
|
DYJ75/35DD （TH170K） |
180 |
35 |
2 |
75 |
45 |
80 |
1 |
4200 |
|
|
DYJ110/70DD （TH240K） |
180 |
70 |
4 |
110 |
65 |
110 |
2 |
16000 |
|
|
DYJ155/70DD （TH340K） |
280 |
70 |
4 |
150 |
80 |
180 |
4 |
16000 |
|
|
DYJ180/70DD （TH400K） |
280 |
35/70 |
4 |
180 |
85 |
180 |
4 |
16000 |
|

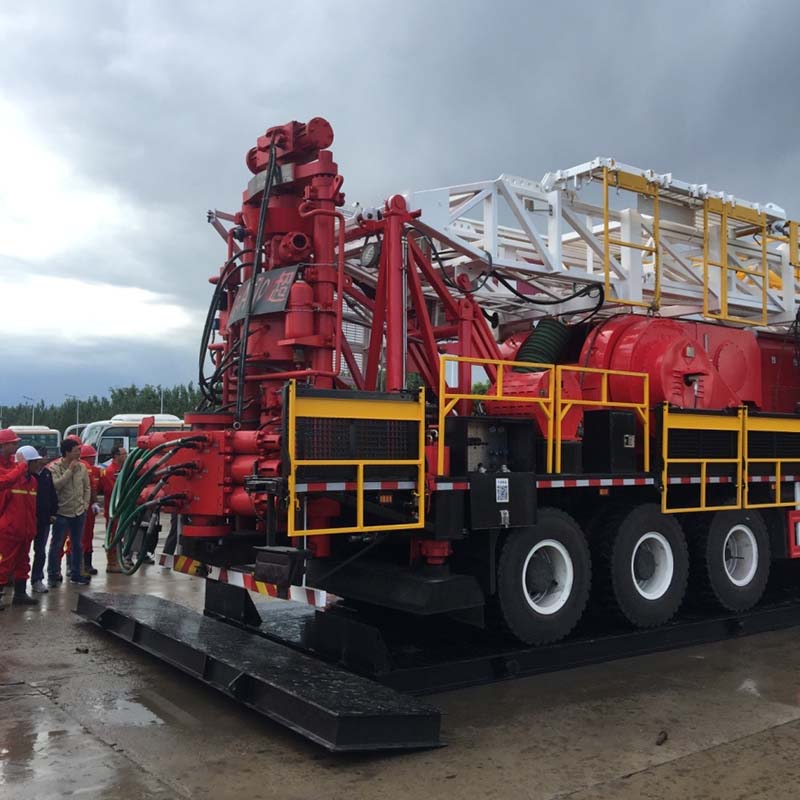

Snubbing Operation Unit On-Board
Features:
Integrating snubbing operation unit with operation vehicles, which greatly saves transportation cost, and reduces the time of moving and installation. It's suitable for snubbing operation of low-pressure oil water wells.
